PSYDENOTE Wavetable · FM · Arp · Sequencer

Four operators with wavetable and sample sources, FM and PM between all of them, a dual filter bus, eight FX units and a 24-slot modulation matrix — wrapped around a layered arpeggiator whose two rows run on their own clocks.

Download for Windows View on GitHub
VST3 + Standalone Windows 10 / 11 · x64 MIT licensed
PsydeNote oscillator view: four wavetable operators with phase and frequency modulation knobs
The instrument

Built to be patched until it hurts.

Everything lives on one screen — no modal diving, no hidden tabs. Drag a cable, paint a lane, roll the dice.

01

Four-Operator Engine

Wavetable and sample sources per operator, with FM and PM routable between all four — including self-modulation taps.

02

Dual Filter Bus

Two independent filters — low-pass, high-pass and band-pass with cutoff and resonance — with per-operator routing into A or B.

03

Eight FX Units

Delay, reverb, chorus, flanger, phaser, distortion, a multiband compressor and a parametric EQ — reorderable in the chain.

04

Modulation Matrix

Three envelopes, three LFOs (add more), an audio follower and 24 routing slots. Grab a cable and drop it on any knob.

05

Mega ARP & Sequencer

18 patterns, a green and a blue row each running its own clock, seven coloured step lanes and a chaos dial that randomises the lot.

06

Sampler & Drag-Out

Resample the synth, slice it on the waveform, then drag the take straight out of the window into your DAW.

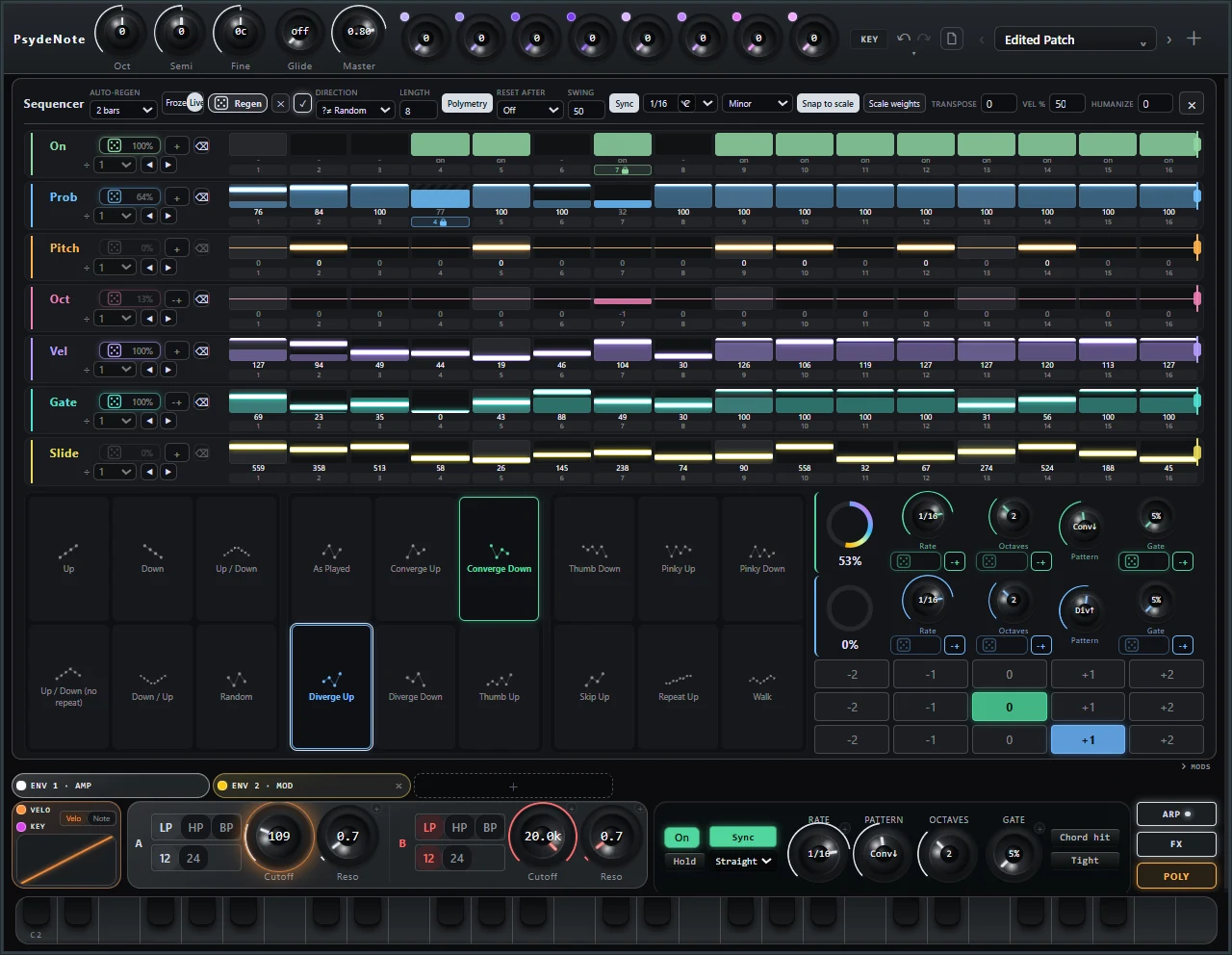

PsydeNote sequencer with 18 arp patterns and probability, pitch, octave, velocity, gate and slide lanes
Arp & sequencer

Two rows. Two clocks.

The green and blue ARP rows each carry their own rate, octaves, gate and chaos amount, so they drift against each other while staying locked to the bar.

  • 18 patterns — up, down, converge, as-played, walk and more, per row.
  • Seven step lanes — on, probability, pitch, octave, velocity, gate and slide.
  • Chaos dial — one knob scales every dice on the panel, from dead-straight to fully unhinged.
  • Scale snap — pick a key and scale, every generated note lands in it.
Screenshots

The actual plugin. No mock-ups.

Captured from the v0.1.0 build. Click any image to enlarge.

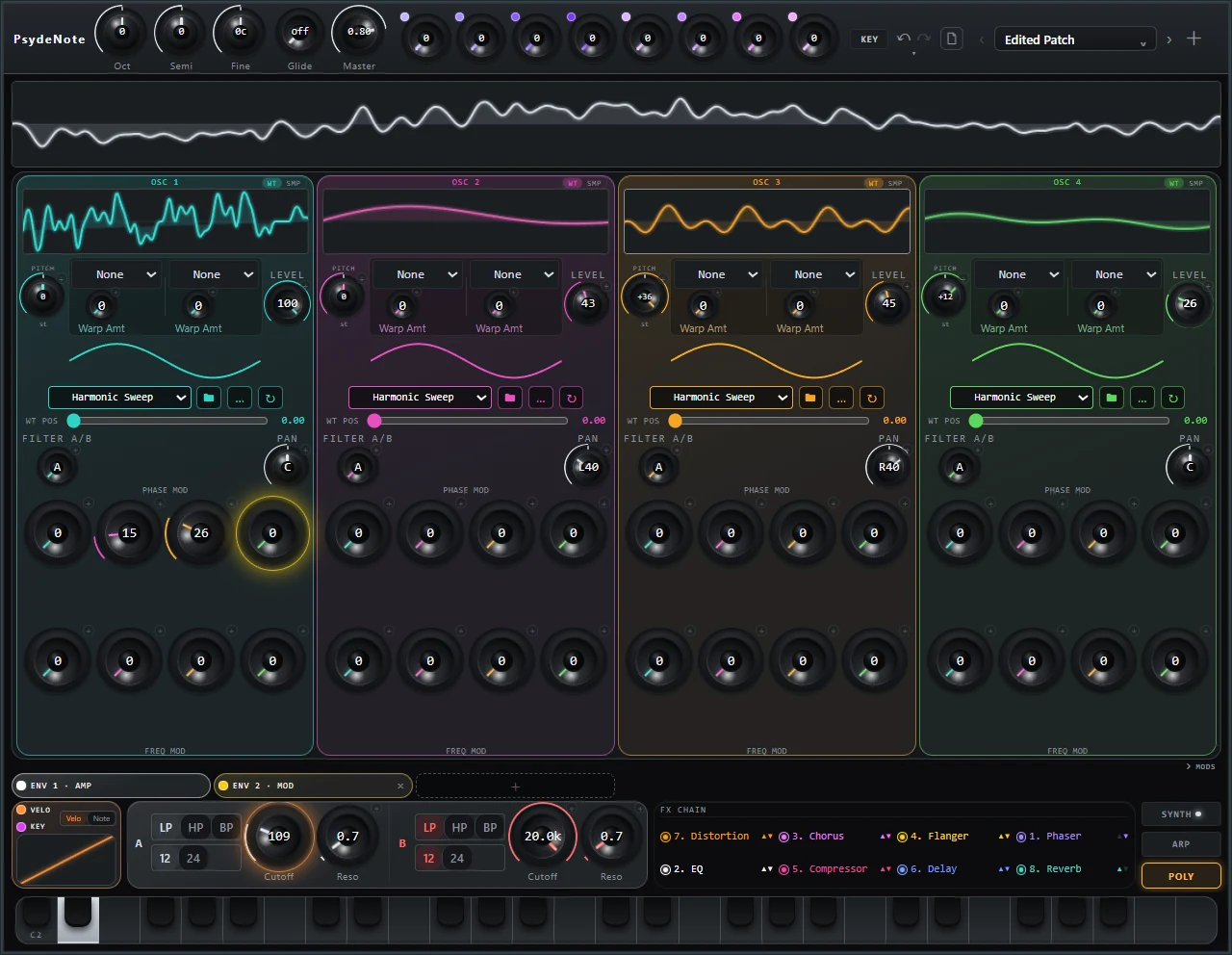

Oscillator view
Oscillators — four wavetable operators, phase and frequency modulation between all of them.

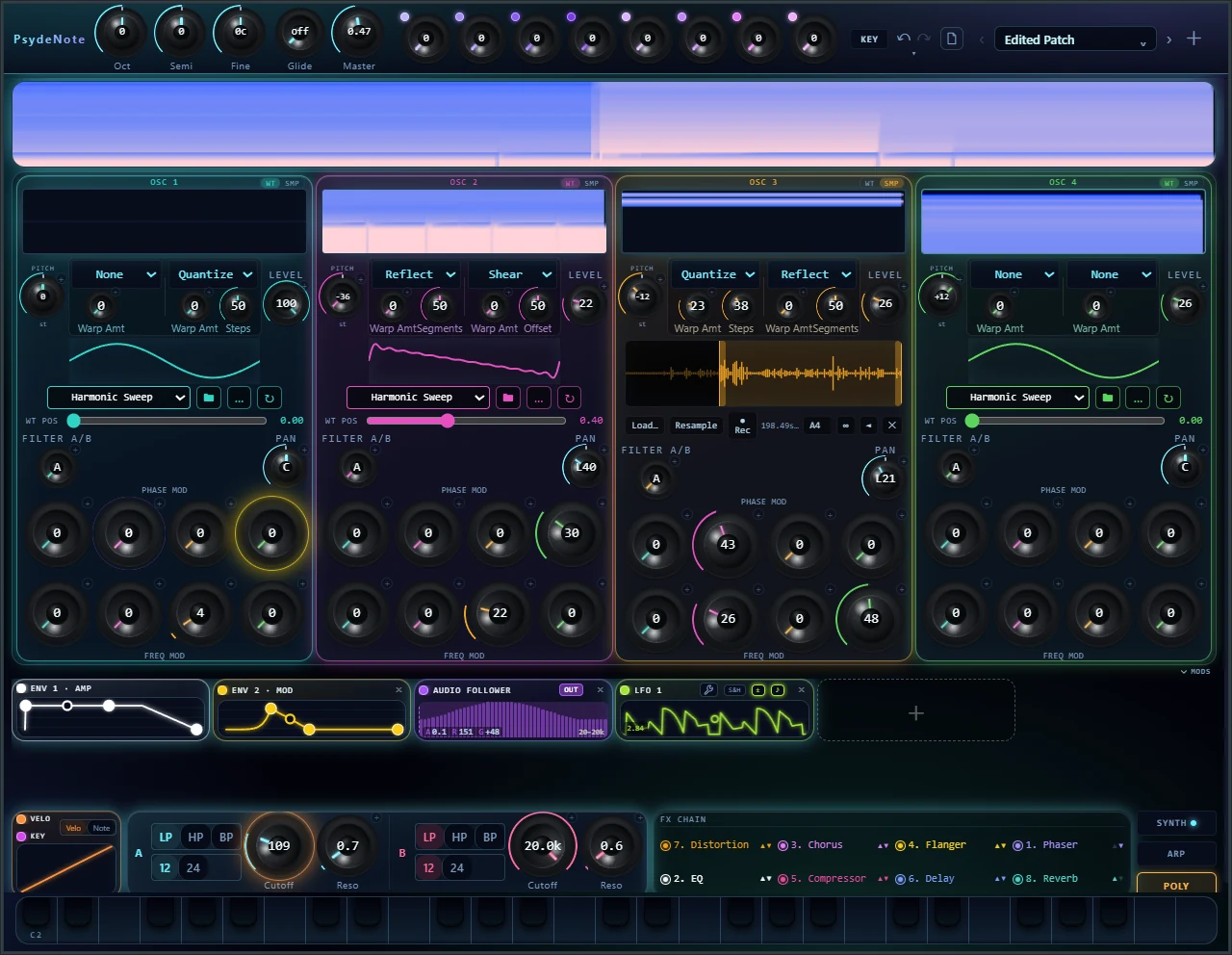

Warp, sampler and modulation
Warp, sampler & mods — per-operator warp modes, a sample slicer, envelopes, audio follower and LFOs.

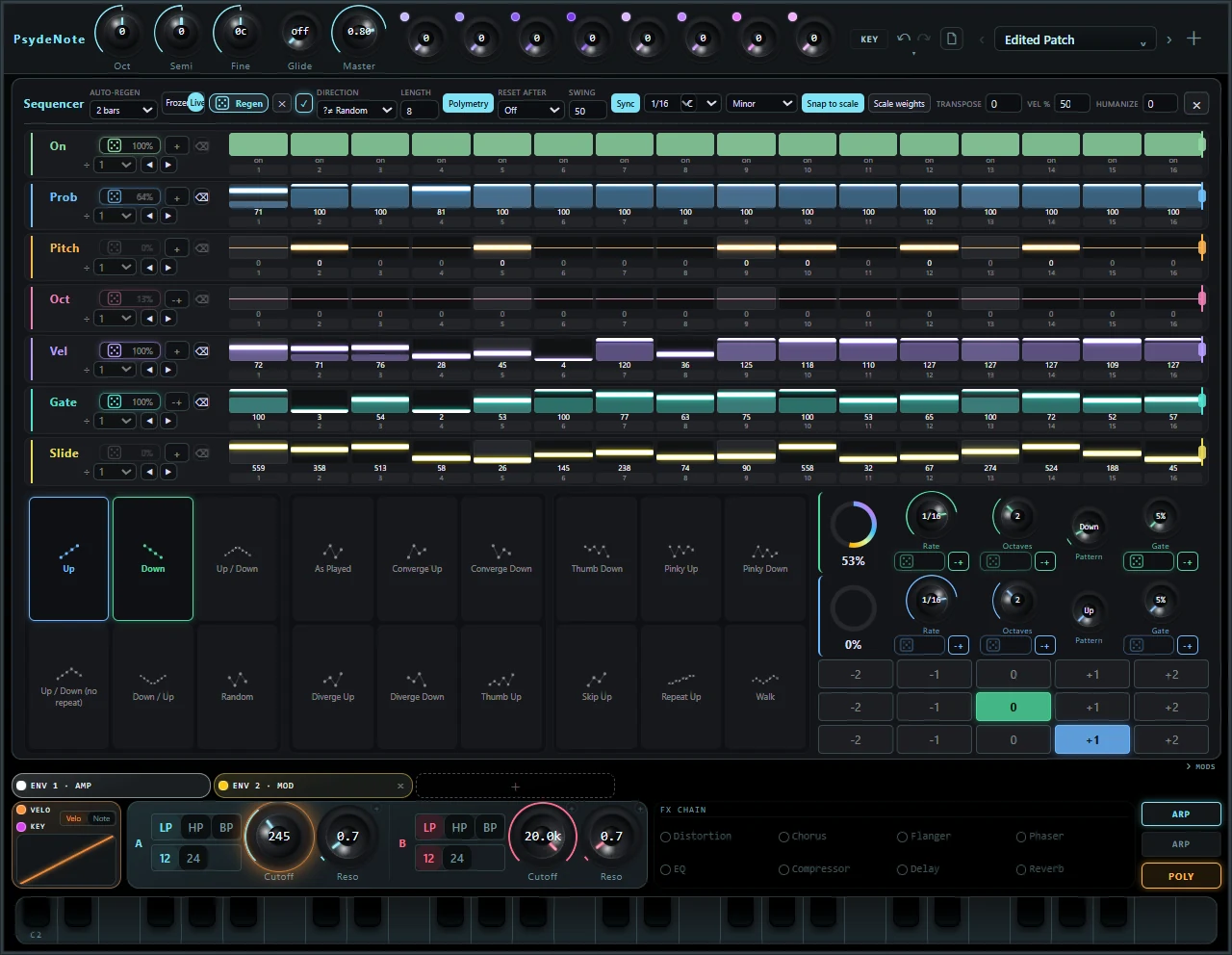

Arp and sequencer
Arp & sequencer — seven coloured step lanes with dice, plus two arp rows on their own clocks.

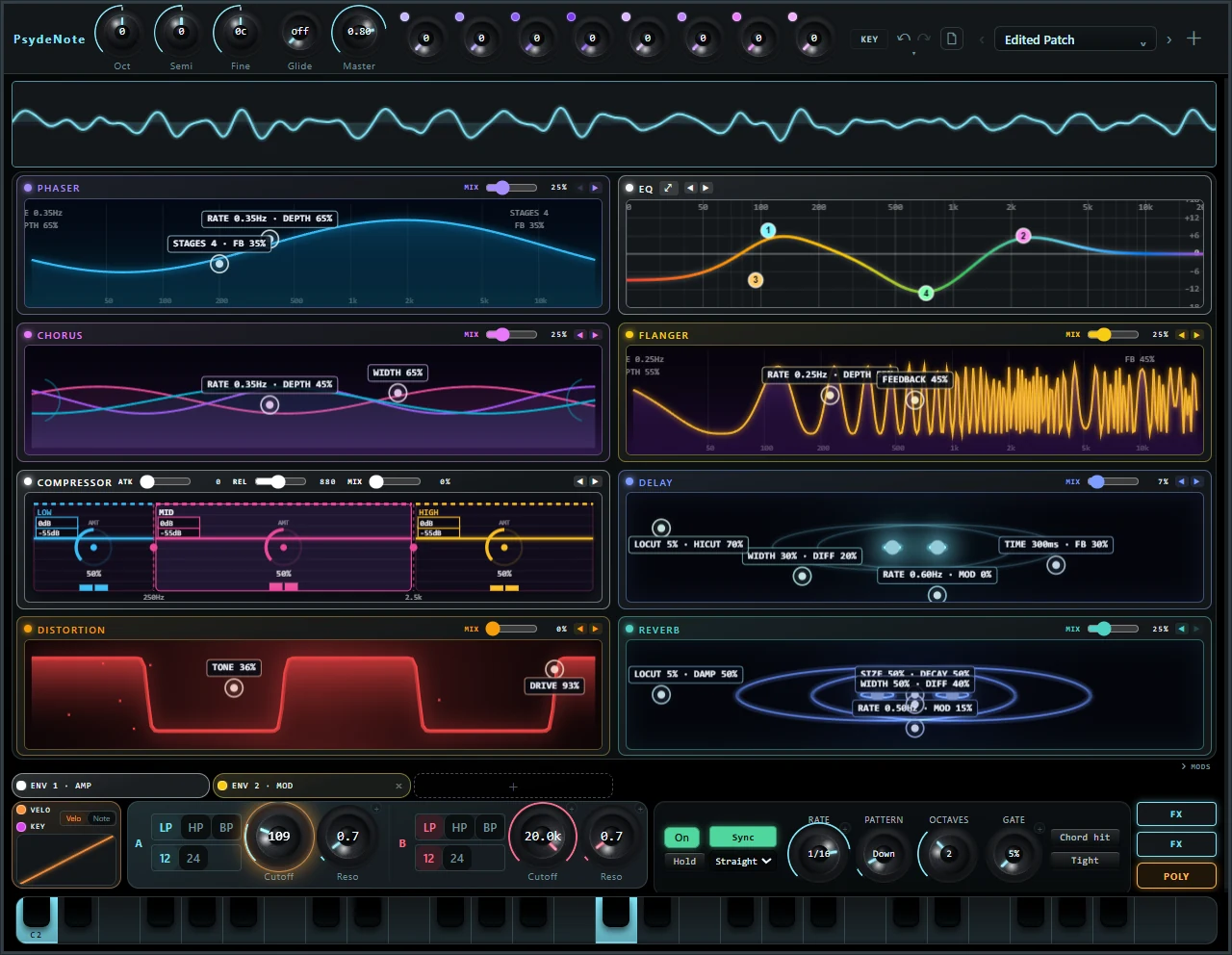

FX chain
FX — eight units with live visualisers, reorderable in the chain.

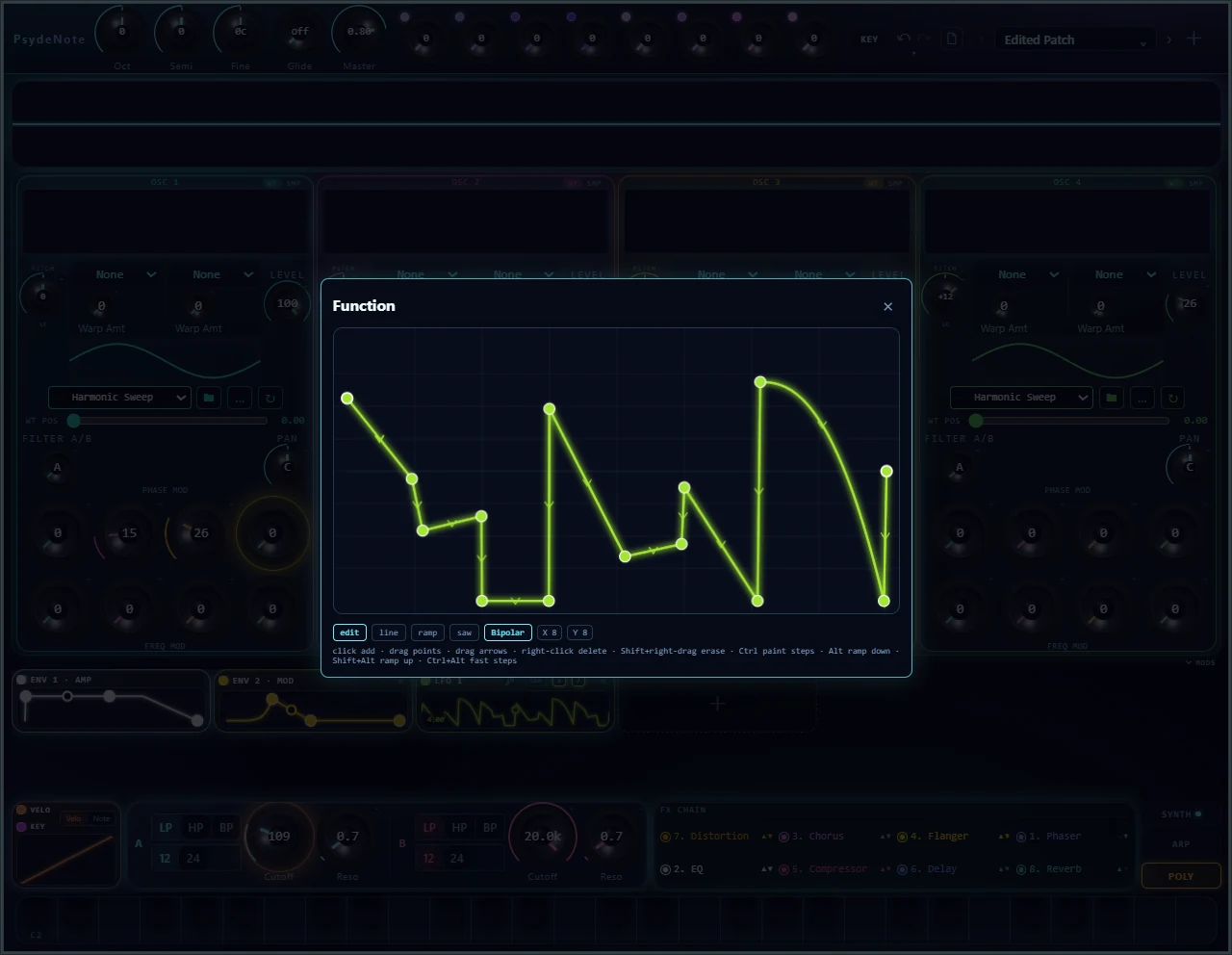

Function editor
Function editor — draw custom modulation shapes with ramps, steps and curves.
Arp patterns
18 arp patterns — Converge, Diverge, Pinky, Thumb, Walk and more.
Under the hood

Small download. Serious engine.

Formats
VST3 + StandaloneWindows x64
Engine
Elementary AudioJUCE 7 · C++ / QuickJS
Interface
WebView2GPU-composited, DPI aware
License
MITSource on GitHub
Get it

Install PsydeNote

The installer puts the VST3 in your common VST3 folder and adds the standalone app to the Start Menu. Prefer a manual install? Grab the VST3 or the Standalone on its own. No account, no dongle, no telemetry.

Installer — VST3 + Standalonev0.1.0 · Windows x64 · 60 MB
VST3 only (zip)Copy PsydeNote.vst3 into C:\Program Files\Common Files\VST3 Standalone only (zip)Unzip anywhere and run PsydeNote.exe All releases & source
Windows 10 / 11 · 64-bit. The standalone and VST3 both need the WebView2 runtime — already present on Windows 11.
Unsigned build. SmartScreen may warn the first time — choose More info → Run anyway.
Open source. MIT licensed, built in the open — issues and PRs welcome.
